Wide Boyz Freestanding Wall

The Wide Boyz Freestanding Wall is a new step forward for home and self supporting walls.

It is a Standalone un-propped bouldering wall designed and manufactured to comply with the strength integrity requirements stated within ‘The European Standard for Artificial Climbing Structures’

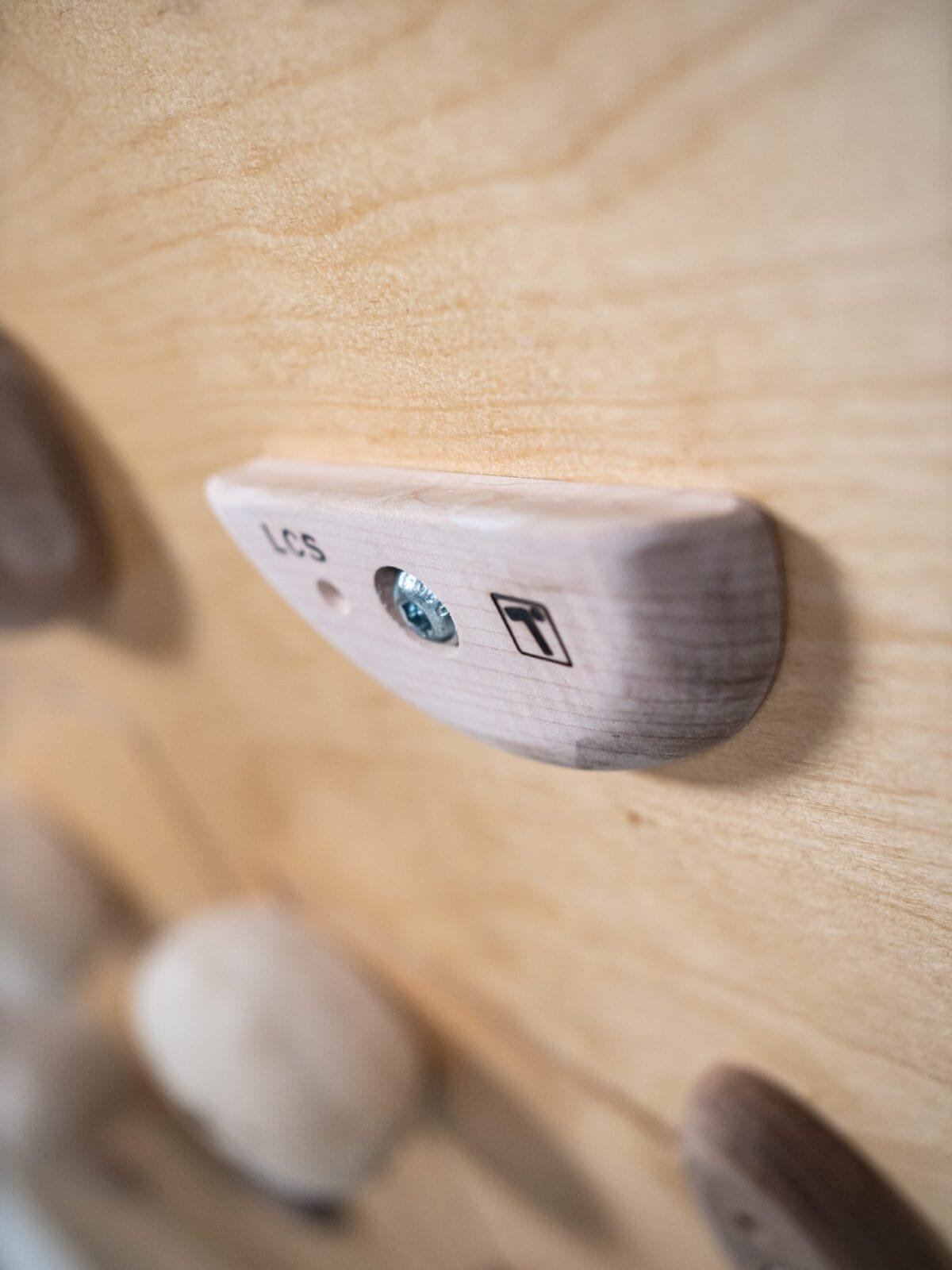

This complete kit consists of a powder coated steel frame along with a T-nutted Birch ply climbing surface, to give a high end look and climbing experience. The climbing surface and T-nut configuration is compatible with both the Mini Moonboard and Tension Board hold setup. The bottom of the wall has a kickboard and the top of the wall has a finishing panel to give the maximum amount of moves possible for the given climbing space.

No wall, ceiling or floor fixings are needed, so the Freestanding Wall can be assembled on any flat surface without the worry of having to drill, bolt or fix into supporting structures. The design of the wall means there are no supporting upright legs within the fall zone, enabling a safer climbing experience, and taking up less space when placed in smaller areas.

The Birch ply is coated and finished to help protect the climbing surface from usage by the climber and splintering from setting with screw-ons. Each climbing panel is specifically marked to line up with the frame fixings for simple panel to frame assembly

The frame is manufactured in such a way to give longevity to its life span. Frame fixings have minimal degradation from assembly and dismantle, meaning the process of taking it up and down can be done numerous times; useful for storing, but also enabling the product to hold value.

The Freestanding Wall comes in a flat pack style with all screws, bolts, allen keys and drill bits used for assembly. The assembly process can be done simply with 2 people. A drill, a tape measure and hammer are needed for assembly, and basic work tools such as a straight level and a G-clamp are useful and advised.

The wall comes at either a 20 degree or 40 degree angle (it is manufactured at either angle and can’t be altered). There is also an option for a shorter (in height) 20 degree wall for those with low ceilings. Please see all the wall dimensions in the downloadable specification sheet further down the page.

Features

CLIMBING SURFACE

  • 18mm coated Birch Ply
  • T-nut configuration compatible with Mini Moonboard and Tension Board hold setup
  • T-nutted kickboard
  • Finishing panel for maximum climbing (finishing panel only compatible to take screw on’s)

FRAME

  • 20 or 40 degree angle wall only
  • Shorter (in height) 20 degree angle also available
  • Steel powder coated frame with bolt and screw fixings
  • Support legs on floor and climbing angle only (no front support arm in the fall zone)
  • Minimal degradation on fixings when assembling and dismantling

ASSEMBLY

  • Simple assembly and dismantle
  • All bolts, screws, allen keys provided
  • Drill, tape measure and hammer needed. basic work tools such as straight level and G-clamps advised.
  • Two people needed

Extras

Matting – this is designed specifically to fit each angle of wall and comprises of 6 pieces4 rectangular modules make up the bulk of the matting surface, these are secured and fastened together with velcro (like you would see at the climbing gym). Mats fold out, protecting the fall zone whilst climbing and fold away (without having to unfasten the velcro) to save space. The final 2 pieces are specifically designed sleeves, which fit over and give protection against the supporting floor legs. Matting worth £650

Holds – A set of Tension hand and foot holds along with M10 bolts, are available. The hold set is specifically selected by us for this wall and covers the full range from larger jug holds, to fat pinches and crimps. There is no specific setting pattern for this wall, the selection of holds are for the customer to set with as they wish.

See a full list of our selected hold set.

Please note holds within the set can’t be swapped, and hold sets can only be purchased alongside the purchase of a Freestanding Wall. Hold set worth £750

Frame only

The frame of the Freestanding Wall can also be purchased without our climbing panels and your own climbing panels can be installed. The frame only option comes with 2 angled legs (split into 3 pieces), plus steel and timber cross beams which hold the frame legs and dictate the width of the board. Vertical timber pieces are also provided for the central panel joins. Please see our downloadable specification sheet for further details

    Specification

    For a full details about sizes, dimensions and terms of use, please download and read our Freestanding Wall specification sheet. Please note for assembly purposes, as a minimum you should be able to fit your arm between any side walls and the side of the frame, to tighten nuts at the back. For ease it is recommended that you can fit a body width so you can see behind the board.

      Finance Purchase Options

      We offer finance options through our partner Kandoo, for all Freestanding Climbing Wall purchases and packages.
      Kandoo offer finance options from £500 to £50k and can either part or fully finance your purchase over a 1 to 5 year period. If you are thinking about a Freestanding Climbing Wall, but can’t afford it outright, this is a great way to tailor and split the payments to suit your needs. To check your eligibility

      Pricing

      OUR 20º WALL IS CURRENTLY REDUCED

      There are 2 prices, one with VAT (first price) and one with zero-rated VAT (second price). Customers within the UK please refer to the first price and customers outside the UK refer to the second price.

      20º Freestanding Wall

      Option 1 – Wall only – £4500 (ex. VAT £3750)

      Option 2 – Wall and matting – £5050 (ex. VAT £4208.33)

      Option 3 – Wall and Hold set – £5150 (ex. VAT £4291.66)

      Option 4 – Wall, matting and hold set – £5700 (ex. VAT £4750)

      Option 5 – Frame only £3150 (ex. VAT £2625)

      Option 6 – Frame only and Matting £3800 (ex. VAT £3166.67)

      Option 7 – Frame only and hold set £3900 (ex. VAT £3250)

      Option 8 – Frame only, matting and hold set £4550 (ex. VAT £3791.67)

      40º Freestanding Wall

      Option 1 – Wall only – £4500 (ex. VAT £3750)

      Option 2 – Wall and matting – £5050 (ex. VAT £4208.33)

      Option 3 – Wall and Hold set – £5150 (ex. VAT £4291.66)

      Option 4 – Wall, matting and hold set – £5700 (ex. VAT £4750)

      Option 5 – Frame only £3550.00 (ex. VAT £2958.33)

      Option 6 – Frame only and Matting £4200 (ex. VAT £3500)

      Option 7 – Frame only and hold set £4300 (ex. VAT £3583.33)

      Option 8 – Frame only, matting and hold set £4950 (ex. VAT £4125)

      20º Freestanding Wall short version

      (for using in rooms with a ceiling height of 2.3m. see the downloadable spec sheet in the specification section of this page, for details)

      Option 1 – Wall only – £4500 (ex. VAT £3750)

      Option 2 – Wall and matting – £5050 (ex. VAT £4208.33)

      Option 3 – Wall and Hold set – £5150 (ex. VAT £4291.66)

      Option 4 – Wall, matting and hold set – £5700 (ex. VAT £4750)

      Option 5 – Frame only £3550.00 (ex. VAT £2958.33)

      Option 6 – Frame only and Matting £4200 (ex. VAT £3500)

      Option 7 – Frame only and hold set £4300 (ex. VAT £3583.33)

      Option 8 – Frame only, matting and hold set £4950 (ex. VAT £4125)



        Shipping Information

        UK shipping

        Frame only shipping – £200

        Frame only and hold set – £200

        All other options – fixed price of £450

        Shipping to Highlands and Islands, please contact us for a specific quote based on your address.

        An option of self collection from our business premises (Chesterfield) is possible.

        European shipping

        European customers will be allocated a custom shipping price which will be calculated using their shipping address and made available upon purchase request. For all shipping outside of the UK the customer is liable for checking and paying any taxes or import charges that may be incurred.



        Rest of the world shipping

        Currently unavailable until further notice (timescales unknown).



        Other Information

        Order to dispatch time is 6 weeks. This is subject to change and we will let you know if the Freestanding Wall will be dispatched under or over these timescales.

        Products will only be shipped when payment in full has been made.

        Commercial options for climbing gyms, fitness gyms and schools are available.



        Order Details

        Please fill in the form and you will be directed to us to fulfil your order.

        We will be in touch with a shipping quote that is specific to your postal address. Once you have confirmed the shipping quote we will then start processing your order.

        You will receive an invoice which can be paid via bank transfer (preferred) or by card.

        Freestanding walls are manufactured on order and will only start being built after a 50% deposit or full payment has been received.



        Get your Freestanding Wall Now!

        Commercial options for climbing walls, fitness gyms and schools are available.

        Manufactured in the UK by Renegade Climbing
